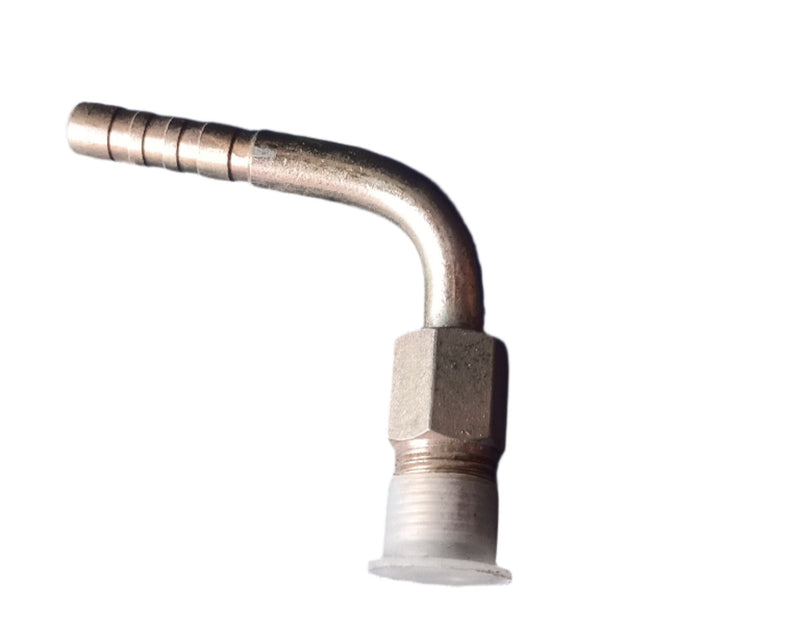

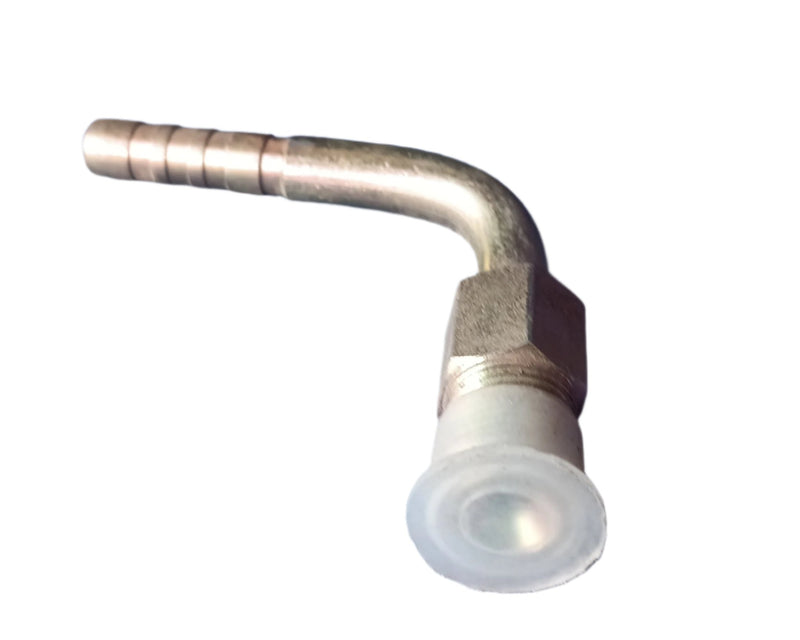

WPR Hose Fitting 10671-16-06H60 60° Male High-Pressure, Corrosion Resistant
Currently out of stock. Please submit a request to our support team to check availability.
Contact Support14-Day Return Policy
Items can be returned within 14 days from the delivery date.
Conditions:
• Product must be unused
• Original packaging required
• Proof of purchase required
Product Description▼
The WPR 10671-16-06H60 60° Male High-Pressure Hose Fitting is designed for rugged applications where reliability and durability are essential. The 60° angle allows for flexible hose routing in tight or angled installations, making it ideal for hydraulic systems in industrial, automotive, and construction settings. Built from corrosion-resistant alloy steel, this male fitting withstands high pressure and resists wear, ensuring a secure, leak-free connection that performs even in harsh environments.
Key Design Features:
- 60° Male Fitting Design: The 60° angled fitting facilitates optimal hose routing in confined or angled spaces, reducing stress on hoses and improving installation flexibility.
- Thread Type: Precision NPT (National Pipe Thread) provides a tight, self-sealing connection, minimizing leaks even in high-pressure systems.
- Material and Finish: Constructed from AISI 316 alloy steel with a protective anti-corrosive coating, ideal for exposure to moisture, chemicals, and outdoor conditions.
- Hexagonal Grip (S2): Hexagonal design allows easy grip and tightening with standard tools, ensuring a secure, reliable fit.
Detailed Specifications:
| Attribute | Details |
|---|---|
| Brand | WPR |
| Part Number | 10671-16-06H60 |
| Type | High-Pressure Hydraulic Hose Fitting, 60° Male |
| Material Grade | High-grade alloy steel (AISI 316) for enhanced corrosion resistance |
| Pressure Rating | Up to 5,000 PSI (34.5 MPa) |
| Temperature Range | -40°F to 250°F (-40°C to 121°C) |
| Connection Type | NPT (National Pipe Thread) |
| Thread Size (THREAD E) | 1" NPT |
| Hose Bore (HOSE BORE) | 3/8" |
| Size | 16-06 standard size |
| Finish | Anti-corrosive coating for extended protection |
| Compatibility | Compatible with high-pressure hydraulic systems |
Dimensions:
| Dimension Label | Measurement |
|---|---|
| DN (Diameter Nominal) | 16 |
| DASH Size | -06 |
| A (Overall Length) | 48.5 mm |
| C (Length of fitting) | 30.0 mm |
| S2 (Hex size) | 27 mm |
Applications and Benefits:
- Leak-Proof 60° Design: The angled 60° fitting allows for efficient hose routing, especially in tight or complex installations, minimizing bending and stress on the hose.
- Durable in High-Moisture and High-Temperature Conditions: With corrosion-resistant materials and a protective finish, this fitting is built for harsh environments high-humidity, industrial, and outdoor applications.
- Corrosion Resistance: Engineered to withstand exposure to chemicals and moisture, ensuring long-term durability and reliable performance.
Usage Recommendations:
- Installation Tips: Clean threads before installation to remove any contaminants. Tighten securely for a leak-free connection in high-pressure settings.
- Maintenance Tips: Regularly inspect for tightness, corrosion, or signs of wear. Re-tighten or replace as necessary to extend performance.
- Ideal Applications: Hydraulic systems in construction, industrial, and agricultural equipment, especially for installations requiring angled hose routing.
